Galvanized Wire 0.5mm–5.0mm Steel Wire Coil for Mesh and Fencing

Anping County Xingpeng Hardware Co., Ltd. is an exporter and manufacturer of galvanized wire. Galvanized wire is used in construction, agriculture, fencing, binding, and mesh weaving. It is applied for vineyard trellis systems, barbed wire production, chain link fence assembly, and gabion mesh manufacturing. Classifications include electro galvanized wire and hot-dip galvanized wire, supplied in low-tensile and high-tensile types with wire diameters from 0.2 mm to 5.0 mm.

Specifications

  • Material: Low carbon steel wire (Q195, SAE1006, SAE1008)
  • Zinc Coating Type: Electro galvanized or hot-dip galvanized
  • Wire Diameter: 0.2 mm – 5.0 mm
  • Tensile Strength:
    • Soft: 300–500 MPa
    • Hard: 500–800 MPa
  • Zinc Coating Weight:
    • Electro galvanized: 10–20 g/m²
    • Hot-dip galvanized: 30–300 g/m²
  • Elongation: ≥10%
  • Coil Weight: 0.5 kg – 1000 kg
  • Packaging: Plastic film inside, woven bag or steel pallet outside

Applications

  • Agriculture: Vineyard trellis wire, bale tying wire, garden support.
  • Fencing: Barbed wire, chain link fence, field fence, welded mesh.
  • Construction: Binding wire for rebar, formwork, scaffolding tie wire.
  • Industrial: Mesh weaving, filter screen framework, hanger wire.
  • Household: Wire hanger, craft work, packaging wire.

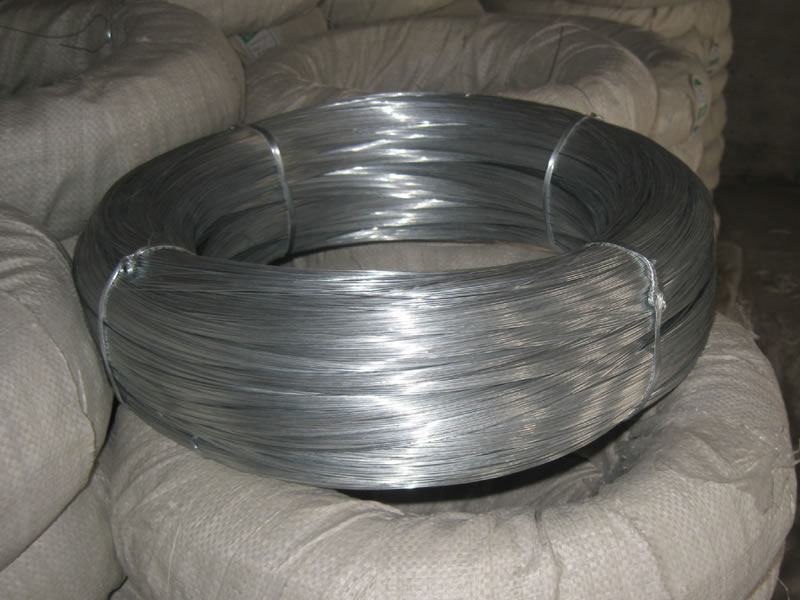

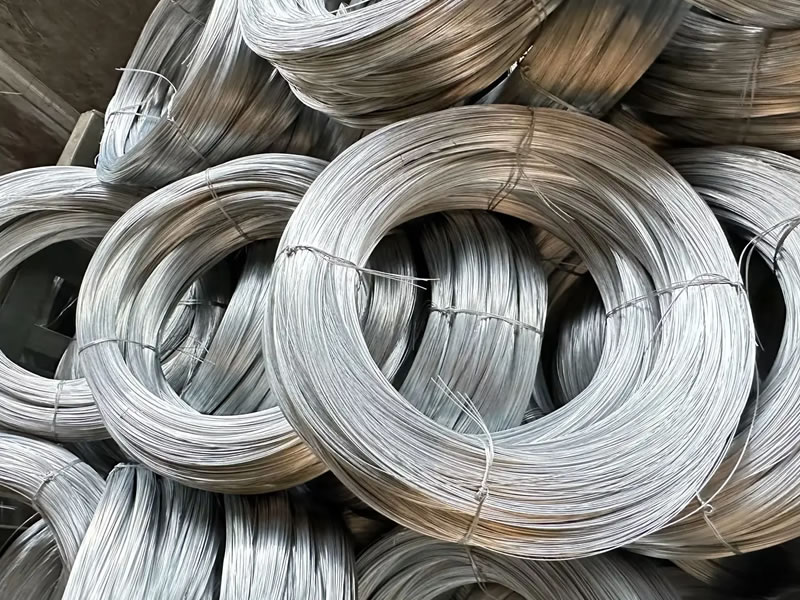

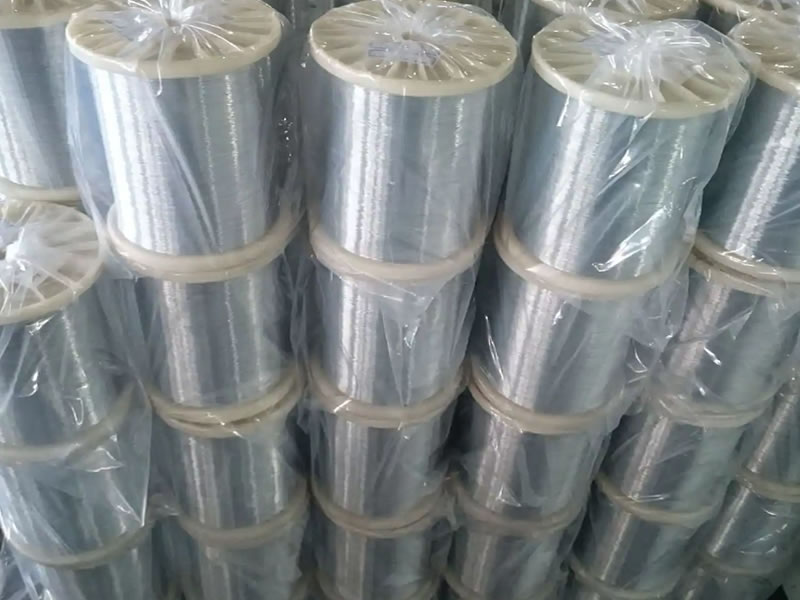

High Tensile Galvanized Iron Wire Galvanized Wire For Agricultural Tying Galvanized Wire For Mesh Production Electro Galvanized Iron Wire For Fencing

Galvanized wire
wire gauge size SWG(mm) BWG(mm) metric(mm)
8 4.06 4.19 4.00
9 3.66 3.76 -
10 3.25 3.40 3.50
11 2.95 3.05 3.00
12 2.64 2.77 2.80
13 2.34 2.41 2.50
14 2.03 2.11 -
15 1.83 1.83 1.80
16 1.63 1.65 1.65
17 1.42 1.47 1.40
18 1.22 1.25 1.20
19 1.02 1.07 1.00
20 0.91 0.89 0.90
21 0.81 0.813 0.80
22 0.71 0.711 0.70
