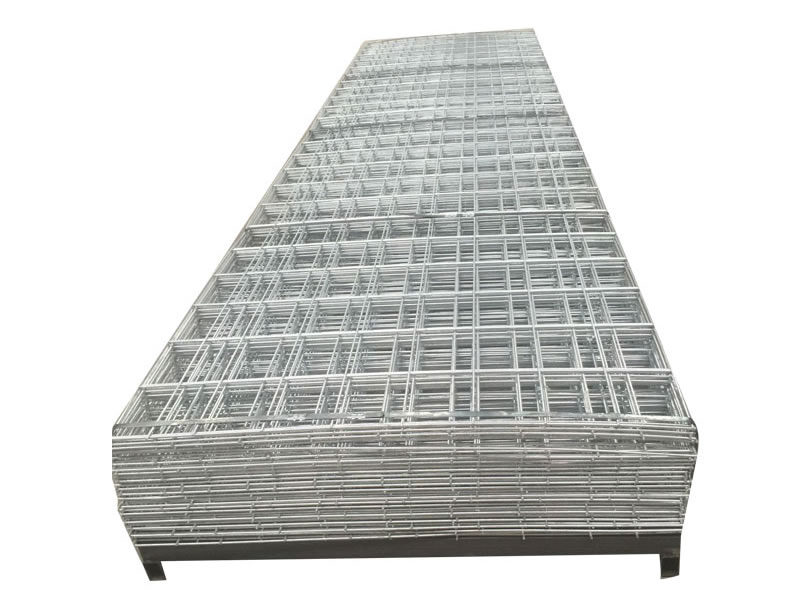

Welded Wire Mesh Panels: Versatile Solutions for Concrete, Fencing

Anping County Xingpeng Hardware Co., Ltd. is an exporter and manufacturer of welded wire mesh panels, commonly used in concrete reinforcement, fencing, animal enclosures, machine guards, and storage solutions. These panels are typically classified by material (low carbon steel, galvanized steel, stainless steel), surface treatment (hot-dip galvanized, electro-galvanized, PVC-coated), mesh shape (square or rectangular), wire diameter (light, medium, heavy duty), and form of supply (panels or rolls) to meet various construction, agricultural, industrial, and security applications.

Material

• Plain Steel: Economical, untreated, for indoor use.
• Galvanized Steel: Zinc-coated for corrosion resistance.
• Stainless Steel (304, 316): High corrosion resistance for marine, food.

Common Panel Dimensions

Welded wire mesh panels are available in standard and custom sizes. These sizes are designed for easy handling, transportation, and installation.

• Common metric sizes include 1 m × 2 m, 1.2 m × 2.4 m, and 1.5 m × 3 m.
• Common imperial sizes include 4 ft × 8 ft, 4 ft × 10 ft, and 5 ft × 10 ft.

Mesh Opening Sizes (Aperture)

The mesh opening size, or aperture, is the space between wires and determines the panel's function.

Square Mesh:

• 25 × 25 mm (1" × 1")
• 50 × 50 mm (2" × 2")
• 100 × 100 mm (4" × 4")

Rectangular Mesh:

• 25 × 50 mm (1" × 2")
• 50 × 100 mm (2" × 4")
• 150 × 150 mm (6" × 6")

Wire Diameter and Gauge

Wire thickness affects panel strength. Diameter is measured in millimeters or by gauge (lower gauge = thicker wire).

• Heavy Duty: 6, 8, 10 gauge (4.88 mm, 3.25 mm, 2.59 mm) .
• Medium Duty: 12, 14 gauge (2.03 mm, 1.63 mm).
• Light Duty: 16, 18, 20 gauge (1.27 mm, 1.02 mm, 0.88 mm).

Surface Finishes

• Electro-Galvanized: Uniform thin zinc coating for dry indoor use.
• Hot-Dip Galvanized: Thick zinc coating for outdoor and harsh conditions.
• PVC Coated: Plastic coating over galvanized wire for extra corrosion resistance and color options (green, black).
