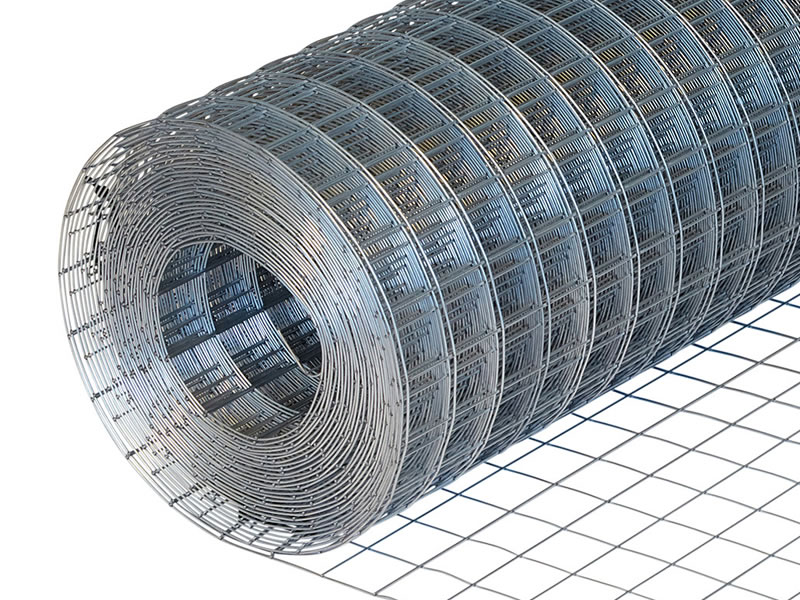

Welded Wire Mesh: Hot-Dipped, Electro-Galvanized, and PVC-Coated

Anping County Xingpeng Hardware Co., Ltd. is a manufacturer and exporter of welded wire mesh, providing a wide range of types and specifications to meet diverse applications. Welded wire mesh is commonly classified by material, coating, mesh size, and wire diameter, and is used in construction for concrete reinforcement, in agriculture for animal enclosures, in industry for partitions and guards, and in security for fencing and protective barriers.

Specifications

• Material: Low carbon steel wire, SS wire (304, 316, 316L), or galvanized steel wire.
• Wire Diameter: 0.5 mm – 8.0 mm (common: 1.2 mm, 2.0 mm, 3.0 mm, 4.0 mm).
• Mesh Opening Size: 6.35 mm × 6.35 mm (1/4") – 200 mm × 200 mm (8");
• Popular sizes 12.7 × 12.7 mm (1/2"), 25 × 25 mm (1"), 50 × 50 mm (2").
• Panel Width: 0.5 m – 2.4 m (common: 1.0 m, 1.2 m, 1.5 m, 2.0 m).
• Panel Length: 1.0 m – 6.0 m (common: 2.4 m, 3.0 m, 6.0 m).
• Roll Width: 0.5 m – 2.0 m (common: 1.0 m, 1.2 m).
• Roll Length: 5 m – 50 m (common: 15 m, 25 m, 30 m).
• Mesh Type: Square mesh (25 × 25 mm), rectangular mesh (50 × 100 mm).
• Standards: Meets ASTM A185, ASTM A497, BS 4483, ISO 1461.

Applications

• Concrete Reinforcement:Strengthens concrete in slabs, walls, and pavements.
• Animal Enclosures: Used for cages, pens, and livestock fencing.
• Machine Guards: Provides safety barriers around equipment.
• Perimeter Fencing: Secures property boundaries and restricted areas.
• Storage Solutions: Used in racks, shelves, and bins.
• Infrastructure Support:Applied in bridges, tunnels, and drainage projects.

Surface Treatment

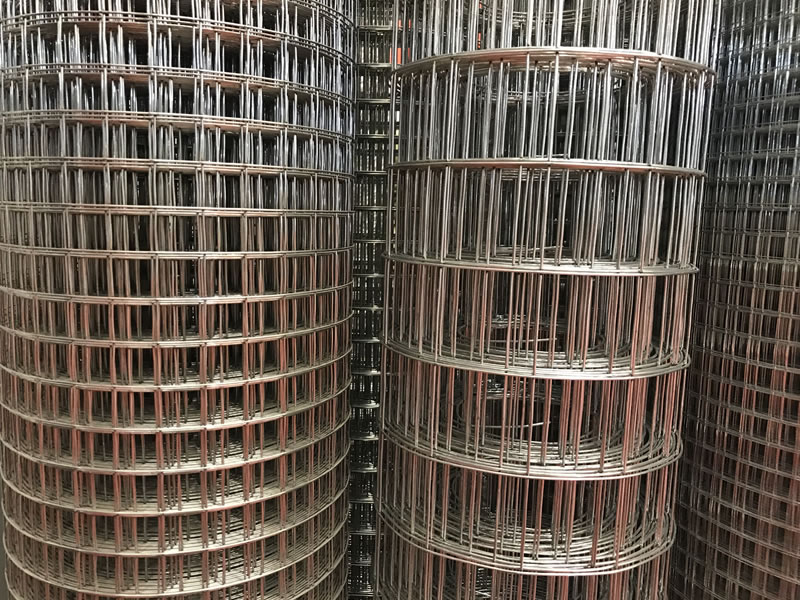

• Hot-Dip Galvanized – Zinc coating 50–300 g/m² for outdoor durability.
• Electro-Galvanized – Zinc coating 15–90 g/m² for indoor or light-duty applications.

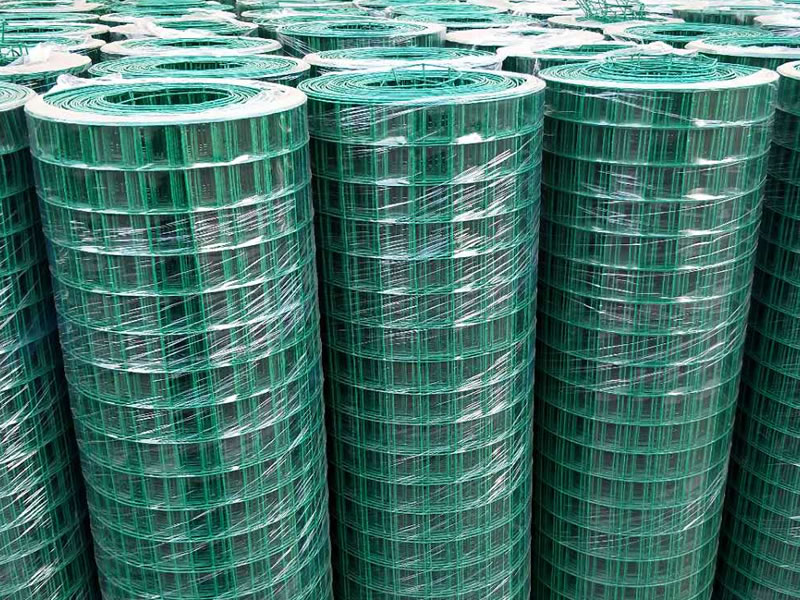

• PVC-Coated  – Coating thickness 0.3–1.0 mm in green, black, or custom colors.
