Material
• Low carbon steel wire
• High tensile strength
1, Specifications

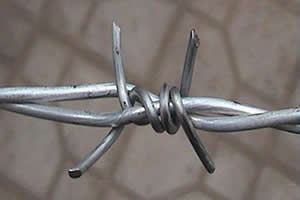

• "IOWA" type, 2 strands, 4 points
• spacing between barbs: "3","4","5","6"
• line wire diameter:12gauge-20gauge
• barb diameter: 12gauge-20gauge
• special specification is supplied according to customer's request
2, weaving and characteristics: twist and weaving

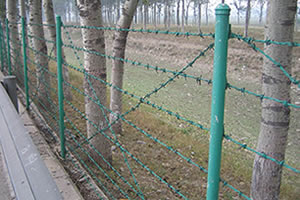

3, Use: used in protecting in glass boundary rally highway etc
4,Available product

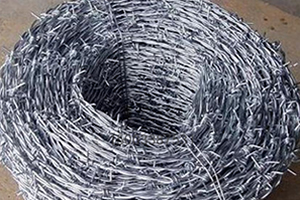

• Hot dipped galvanized barbed wire
• Electro galvanized barbed wire

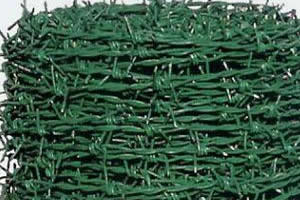

• Pvc coated barbed wire
• Special specification is supplied according to customer's request
5,Packing: Standard coil and small coil available
|
Gauge of
Strand and Barb in B.W.G. |
Approximate Length per Kilo in Meter |
Barbs Spacing 3" |
Barbs Spacing 4" |
Barbs Spacing 5" |
Barbs Spacing 6" |
12x12 |
6.0617 |
6.7590 |
7.2700 |
7.6376 |
12x14 |
7.3335 |
7.9051 |
8.3015 |
8.5741 |
12-1/2x12-1/2 |
6.9223 |
7.7190 |
8.3022 |
8.7221 |
12-1/2x14 |
8.1096 |
8.814 |
9.2242 |
9.5620 |
13x13 |
7.9808 |
8.899 |
9.5721 |
10.0553 |
13x14 |
8.8448 |
9.6899 |
10.2923 |
10.7146 |
13-1/2x14 |
9.6079 |
10.6134 |
11.4705 |
11.8553 |
14x14 |
10.4569 |
11.6590 |
12.5423 |
13.1752 |
14-1/2x14-1/2 |
11.9875 |
13.3671 |
14.3781 |
15.1034 |
15x15 |
13.8927 |
15.4942 |
16.6666 |
17.5070 |
15-1/2x15-1/2 |
15.3491 |
17.1144 |
18.4060 |
19.3386 |
|
|
