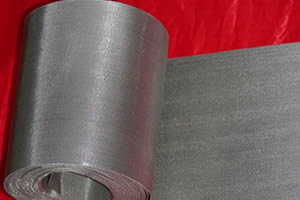

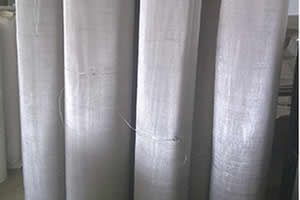

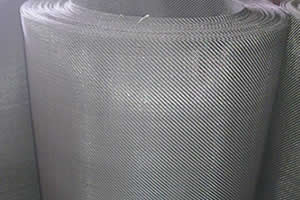

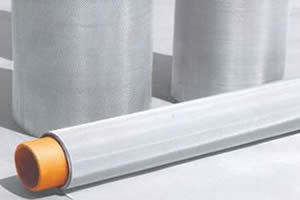

Jinkaiyi is experienced in producing woven wire mesh and wire cloth, mainly stainless steel wire mesh and cloth, brass and phosphor bronze wire mesh and cloth, silver wire mesh, iron woven wire mesh and wire cloth and more.
Stainless Steel Wire Mesh Materials:
Type 304, Type 304 L, Type 316 and Type 316 L.
Type 304 often refers to as "18-8" (18% chromium, 8% nickel ). T-304 is the basic stainless alloy mostly commonly utilized for wire cloth weaving. It withstands outdoor exposure without rusting and resists oxidation at an elevated temperature up to 1400 Degrees Fahrenheit. Type 304 L is very similar to T-304, the difference being the reduced carbon content for better weaving and secondary welding characteristics.
Mesh/Inch |
Wire Diameter |
Aperture |
Open Area |
Weight(LB) /100 Square Foot |
Inch |
MM |
Inch |
MM |
1x1 |
.080 |
2.03 |
.920 |
23.37 |
84.6 |
41.1 |
2X2 |
.063 |
1.60 |
.437 |
11.10 |
76.4 |
51.2 |
3X3 |
.054 |
1.37 |
.279 |
7.09 |
70.1 |
56.7 |
4X4 |
.063 |
1.60 |
.187 |
4.75 |
56.0 |
104.8 |
4X4 |
.047 |
1.19 |
.203 |
5.16 |
65.9 |
57.6 |
5X5 |
.041 |
1.04 |
.159 |
4.04 |
63.2 |
54.9 |
6X6 |
.035 |
.89 |
.132 |
3.35 |
62.7 |
48.1 |
8X8 |
.028 |
.71 |
.097 |
2.46 |
60.2 |
41.1 |
10X10 |
.025 |
.64 |
.075 |
1.91 |
56.3 |
41.2 |
10X10 |
.020 |
.51 |
.080 |
2.03 |
64.0 |
26.1 |
12X12 |
.023 |
.584 |
.060 |
1.52 |
51.8 |
42.2 |
12X12 |
.020 |
.508 |
.063 |
1.60 |
57.2 |
31.6 |
14X14 |
.023 |
.584 |
.048 |
1.22 |
45.2 |
49.8 |
14X14 |
.020 |
.508 |
.051 |
1.30 |
51.0 |
37.2 |
16X16 |
.018 |
.457 |
.0445 |
1.13 |
50.7 |
34.5 |
18X18 |
.017 |
.432 |
.0386 |
.98 |
48.3 |
34.8 |
20X20 |
.020 |
.508 |
.0300 |
.76 |
36.0 |
55.2 |
20X20 |
.016 |
.406 |
.0340 |
.86 |
46.2 |
34.4 |
24X24 |
.014 |
.356 |
.0277 |
.70 |
44.2 |
31.8 |
30X30 |
.013 |
.330 |
.0203 |
.52 |
37.1 |
34.8 |
30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
29.4 |
30X30 |
.009 |
.229 |
.0243 |
.62 |
53.1 |
16.1 |
35X35 |
.011 |
.279 |
.0176 |
.45 |
37.9 |
29.0 |
40X40 |
.010 |
.254 |
.0150 |
.38 |
36.0 |
27.6 |
50X50 |
.009 |
.229 |
.0110 |
.28 |
30.3 |
28.4 |
50X50 |
.008 |
.203 |
.0120 |
.31 |
36.0 |
22.1 |
60X60 |
.0075 |
.191 |
.0092 |
.23 |
30.5 |
23.7 |
60X60 |
.007 |
.178 |
.0097 |
.25 |
33.9 |
20.4 |
70X70 |
.0065 |
.165 |
.0078 |
.20 |
29.8 |
20.8 |
80X80 |
.0065 |
.165 |
.0060 |
.15 |
23.0 |
23.2 |
80X80 |
.0055 |
.140 |
.0070 |
.18 |
31.4 |
16.9 |
90X90 |
.005 |
.127 |
.0061 |
.16 |
30.1 |
15.8 |
100X100 |
.0045 |
.114 |
.0055 |
.14 |
30.3 |
14.2 |
100X100 |
.004 |
.102 |
.0060 |
.15 |
36.0 |
11.0 |
100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
8.3 |
110X110 |
.0040 |
.1016 |
.0051 |
.1295 |
30.7 |
12.4 |
120X120 |
.0037 |
.0940 |
.0064 |
.1168 |
30.7 |
11.6 |
150X150 |
.0026 |
.0660 |
.0041 |
.1041 |
37.4 |
7.1 |
160X160 |
.0025 |
.0635 |
.0038 |
.0965 |
36.4 |
5.94 |
180X180 |
.0023 |
.0584 |
.0033 |
.0838 |
34.7 |
6.7 |
200X200 |
.0021 |
.0533 |
.0029 |
.0737 |
33.6 |
6.2 |
250X250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
4.4 |
270X270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
4.7 |
300X300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
3.04 |
325X325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
4.40 |
400X400 |
.0010 |
.0254 |
.0015 |
.370 |
36.0 |
3.3 |
500X500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
3.8 |
635X635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
2.63 |
|
