Wire Materials: Mild steel wire, stainless steel wire, galvanized steel wire, hot-dipped zinc plating iron wire.
Process: Galvanized after weaving or galvanized before weaving.

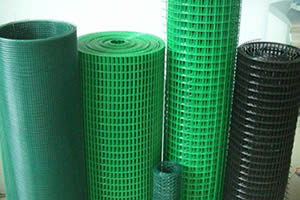

Finish: Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated.
General Use:Welded Wire Mesh with excellent corrosion resistance and oxidation resistance, is extensively used as fencing, decoration and machinery protection material in agriculture, construction, transport, mine, sports field, lawn and various industrial fields.
Specification List of Welded Wire Mesh: |
Opening |
Wire Diameter<BWG> |
In inch |
In metric unit(mm) |
1/4" x 1/4" |
6.4mm x 6.4mm |
22,23,24 |
3/8" x 3/8" |
10.6mm x 10.6mm |
19,20,21,22 |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21,22,23 |
5/8" x 5/8" |
16mm x 16mm |
18,19,20,21, |
3/4" x 3/4" |
19.1mm x 19.1mm |
16,17,18,19,20,21 |
1" x 1/2" |
25.4mm x 12.7mm |
16,17,18,19,20,21 |
1-1/2" x 1-1/2" |
38mm x 38mm |
14,15,16,17,18,19 |
1" x 2" |
25.4mm x 50.8mm |
14,15,16 |
2" x 2" |
50.8mm x 50.8mm |
12,13,14,15,16 |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
Galvanized Fencing Mesh: |
Opening |
Wire Diameter<BWG> |
In inch |
In metric unit(mm) |
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
3" x 3" |
75mm x 75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request. |
| Welded Wire Mesh Panels |
| Opening |
Wire Diameter<BWG> |
| In inch |
In metric unit(mm) |
| 1/4" x 1/4" |
6.4 x 6.4 |
22,23,24 |
| 3/8" x 3/8" |
10.6 x 10.6 |
19,20,21,22 |
| 1/2" x 1/2" |
12.7 x 12.7 |
16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" |
16 x 16 |
18,19,20,21, |
| 3/4" x 3/4" |
19.1 x 19.1 |
16,17,18,19,20,21 |
| 1" x 1/2" |
25.4 x 12.7 |
16,17,18,19,20,21 |
| 2"x3" |
50 x 75 |
2.0mm,2.5mm,1.65mm |
| 3"x3" |
75 x 756 |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
| 2"x4" |
50 x 100 |
2.11mm,2.5mm |
| 4"x4" |
100 x 100 |
2.0mm,2.5mm |
|
