Gabion Box

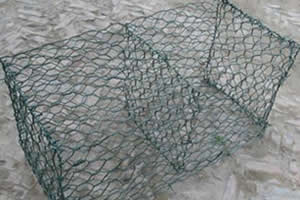

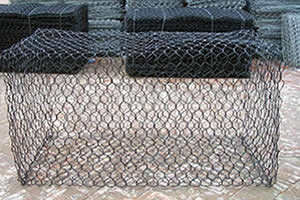

Gabions boxes are wire containers made of hexagonal wire netting. Wire diameter varies with the
hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to
4.0mm.
For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm.
The wire of the outside frame edge is one wire gauge thicker than the wire used for hexagonal wire netting.

Features:
Economic. Just fill the stone into the gabions and seal it.
Simple installation. No special technology needed.
Weather proof under natural destroy, corrosion resistant.
No collapse even under big scope of deforming.
Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment.
Good permeation can prevent the damage by hydrostatic.
Less transport freight. It can be folded together for transport and further installation.

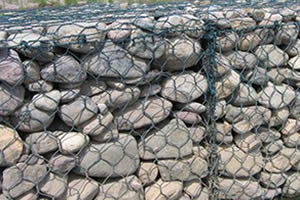

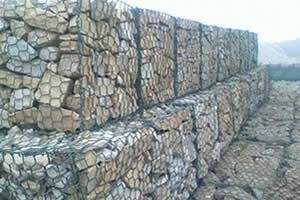

Gabion boxes applications:

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area.

Opening
(mm)

Wire Diameter(Metal Wire)    (mm)

Wire Diameter (PVC Coate)/ Inner/Outside(mm)

Strands

60X80

φ2.0-2.8

φ2.0/3.0-2.5/3.5

3

80X100

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

80X120

φ2.0-3.2

φ2.0/3.0-2.8/3.8

3

100X120

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

100X150

φ2.0-3.4

φ2.0/3.0-2.8/3.8

3

120X150

φ2.0-4.0

φ2.0/3.0-3.0/4.0

3
