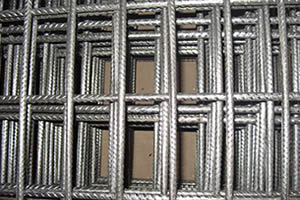

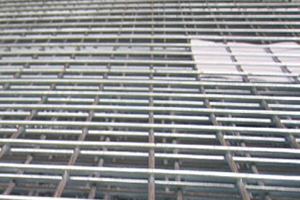

Welded Wire Mesh Panel is made of superior quality welded mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Assortments available:
Welded Stainless Steel Wire Mesh Panels
Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels
Property: Welded wire mesh panels enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance.
Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
Galvanized Fencing Mesh |
Opening |
Wire Diameter(BWG) |
In inch |
In metric unit(mm) |
2" x 3" |
50mm x 75mm |
2.0mm,2.5mm,1.65mm |
3" x 3" |
75mm x 75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" |
50mm x 100mm |
2.11mm,2.5mm |
4" x 4" |
100mm x 100mm |
2.0mm,2.5mm |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request

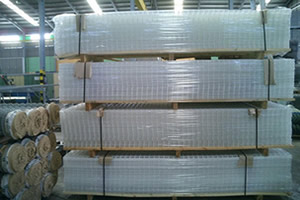

3,Packing: in waterproof paper in rolls. Custom packing available at request. |

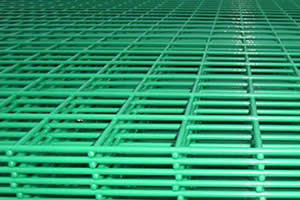

PVC Coated Welded Mesh |
Opening |
Wire Diameter(BWG) |
In inch |
In metric unit(mm) |
1/2" x 1/2" |
12.7mm x 12.7mm |
16,17,18,19,20,21 |
3/4" x 3/4" |
19mm x 19mm |
16,17,18,19,20,21 |
1" x 1" |
25.4mm x 25.4mm |
15,16,17,18,19,20 |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.2m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
|
